They happen when slopes become unstable leading to the movement of potentially huge amounts of soil, rock and other debris. Heavy rain, drought and deforestation can all lead to landslides, and climate change is increasing their occurrence around the world.
They can be hugely destructive causing:
- loss of life for thousands
- damage to critical infrastructure such as water supply
- destruction of wildlife and agriculture, electricity and communication lines, health, education and employment.
Traditional landslide early warning systems were costly or had technical limitations, for example inclinometer-based systems or regional rainfall forecasting. So engineers from Loughborough University decided to come up with another solution and have designed an early warning system that is:
- affordable
- easy to use and maintain
- able to listen to underground soil movements to alert communities of imminent landslides.
About the project
The Community Slope SAFE (CSS) is a low-cost warning system which has been developed in collaboration with UK based Datalink Electronics Ltd. Aimed at low and middle-income countries in areas at risk of landslides, it is designed so local people in vulnerable communities can operate the system and respond to alerts.
Dr Alister Smith worked on the project, led by Professor Neil Dixon, through two fellowships from the Engineering and Physical Sciences Research Council (EPSRC), part of UK Research and Innovation (UKRI).
Dr Smith says:
Traditional landslide early warning systems were prohibitively expensive or had technical limitations. Our system ‘hears’ a landslide forming. It is useful for at-risk communities, as well as infrastructure owners and operators around the world.
How it works
A steel tube called a waveguide is driven into the slope in a landslide risk zone. Inside its protective cover is a solar battery-powered sensor.
The soil in and around the tube generates high-frequency noises known as acoustic emissions if the slope moves. These sounds are transmitted to the sensor, where the mechanical energy is converted into an electrical signal. If a threshold is exceeded, a warning is transmitted.
Omitting background noise was critical, Dr Smith explains:
We developed the interpretation system to exclude low-frequency noise from sources like transport and agriculture, even heavy rain, to avoid false alarms.
The success of an early warning system depends on the context and the knowledge at hand. This isn’t a magic wand. Areas at risk still need a geotechnical engineer to understand the nature of the potential landslide and help predict its behaviour.
In 2018 the system was installed in Chin state in Myanmar where landslides had caused loss of life and damage to infrastructure. With help through a local radio appeal, 20 young volunteers were recruited and trained to install, operate and maintain the system.
The Chief of Party, Matthew Pietz, FHI 360, Myanmar (a not-for-profit organisation working to improve the health and wellbeing of people) said:
A critical benefit of the work in Hakha has been raising awareness in the community to help improve community resilience to future landslide events. This project has been a catalyst for future landslide monitoring projects and has established the groundwork for government awareness and support.
Impacts of the project
Over the last few years, this research has achieved multiple milestones:
2017
In 2017 the system was trialled in a hilltop area of Kuala Lumpur, Malaysia. Local and national politicians attended briefings to find out how the system worked and its potential outcomes in areas with a history of slope failures.
2019
In 2019 Dr Alister Smith was awarded the Philip Leverhulme Prize in engineering (£100,000) for researchers whose work has had international impact and whose future research career is exceptionally promising.

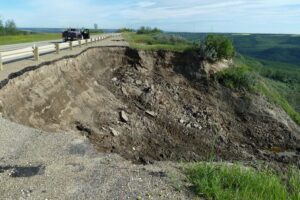

Landslide at Peace River, Canada (credit: Loughborough University)
In 2019, Canadian firm RST Instruments, who also have an office based in the UK, launched the world’s first commercial acoustic emission slope monitoring system. They did this through a licensing agreement with Loughborough University.
The Geo Acoustic Aware, meaning low-cost early warning systems for landslides, is now available globally.
2020
In January 2020, following the instillation of the system in 2018, the Chin state government took over the responsibility for the CSS monitoring system.
It followed improvements to the system design which was supported by a local group called Community Care for Emergency Response and Rehabilitation (CCERR).
A coordinator from CCERR estimated that around 15,000 to 20,000 of the population of Hakha town benefits from the project.
Future research
The acoustic emissions approach is now being applied to other ground behaviour scenarios. Dr Smith explains:
We initially focused on landslides, but now we’re looking at the impact of ground movements on all sorts of critical infrastructure, from buried pipes to dams. Using acoustic emissions to monitor the health of infrastructure is an entirely novel approach. This could transform how we monitor geotechnical assets.
Find out more
More about CSS, RST Instruments’ commercial product and infrastructure research can be found on Loughborough University’s talking infrastructure website.
There is also a YouTube video available on acoustic emission monitoring of infrastructure.
Top image: Local volunteers at CSS trial site in Hakha, Myanmar (credit: Loughborough University)
